Working With Excel Spreadsheet Files Without Using Excel…

One of the most frequently encountered ways of sharing small datasets is in the form of Excel spreadsheet (.xls) files, notwithstanding all that can be said In Praise of CSV😉 The natural application for opening these files is Microsoft Excel, but what if you don’t have a copy of Excel available?

There are other desktop office suites that can open spreadsheet files, of course, such as Open Office. As long as they’re not too big, spreadsheet files can also be uploaded to and then opened using a variety of online services, such as Google Spreadsheets, Google Fusion Tables or Zoho Sheet. But spreadsheet applications aren’t the only data wrangling tools that can be used to open xls files… Here are a couple more that should be part of every data wrangler’s toolbox…

(If you want to play along, the file I’m going to play with is a spreadsheet containing the names and locations of GP practices in England. The file can be found on the NHS Indicators portal – here’s the actual spreadsheet.)

Firstly, Google Refine. Google Refine is a cross-platform, browser based tool that helps with many of the chores relating to getting a dataset tidied up so that you can use it elsewhere, as well as helping out with data reconcilation or augmenting rows with annotations provided by separate online services. You can also use it as a quick-and-dirty tool for opening an xls spreadsheet from a URL, knocking the data into shape, and dumping it to a CSV file that you can use elsewhere. To start with, choose the option to create a project by importing a file from a web address (the XLS spreadsheet URL):

Once loaded, you get a preview view..

You can tidy up the data that you are going to use in your project via the preview panel. In this case, I’m going to ignore the leading lines and just generate a dataset that I can export directly as a CSV file once I’ve got the data into my project.

If I then create a project around this dataset, I can trivially export it again using a format of my own preference:

So that’s one way of using Google Refine as a simple file converter service that allows you to preview and to a certain extent shape the data in XLS spreadsheet, as well as converting it to other file types.

The second approach I want to mention is to use a really handy Python software library (xlrd – Excel Reader) in Scraperwiki. The Scraperwiki tutorial on Excel scraping gives a great example of how to get started, which I cribbed wholesale to produce the following snippet.

import scraperwiki
import xlrd

def cellval(cell):
    if cell.ctype == xlrd.XL_CELL_EMPTY:    return None
    return cell.value

def dropper(table):
    if table!='':
        try: scraperwiki.sqlite.execute('drop table "'+table+'"')
        except: pass

def reGrabber():
    url = ''
    xlbin = scraperwiki.scrape(url)
    book = xlrd.open_workbook(file_contents=xlbin)

    sheet = book.sheet_by_index(0)

    keys = sheet.row_values(8)
    keys[1] = keys[1].replace('.', '')
    print keys

    for rownumber in range(9, sheet.nrows):
        # create dictionary of the row values
        values = [ cellval(c) for c in sheet.row(rownumber) ]
        data = dict(zip(keys, values))
        #print data'GPpracticeLookup',unique_keys=['Practice Code'], data=data)

#Uncomment the next line if you want to regrab the data from the original spreadsheet

You can find my scraper here: UK NHS GP Practices Lookup. What’s handy about this approach is that having scraped the spreadsheet data into a Scraperwiki database, I can now query it as database data via the Scraperwiki API.

(Note that the Google Visualisation API query language would also let me treat the spreadsheet data as a database if I uploaded it to Google Spreadsheets.)

So, if you find yourself with an Excel spreadsheet, but no Microsoft Office to hand, fear not… There are plenty of other tools other there you can appropriate to help you get the data out of the file and into a form you can work with:-)

PS R is capable of importing Excel files, I think, but the libraries I found don’t seem to compile onto Max OS/X?

PPS ***DATA HEALTH WARNING*** I haven’t done much testing of either of these approaches using spreadsheets containing multiple workbooks, complex linked formulae or macros. They may or may not be appropriate in such cases… but for simple spreadsheets, they’re fine…


Exploring GP Practice Level Prescribing Data

Some posts I get a little bit twitchy about writing. Accessing and Visualising Sentencing Data for Local Courts was one, and this is another: exploring practice level prescription data (get the data).

One of the reasons it feels “dangerous” is that the rationale behind the post is to demonstrate some of the mechanics of engaging with the data at a context free level, devoid of any real consideration about what the data represents, whilst using a data set that does have meaning, the interpretation of which can be used as the basis of making judgements about various geographical areas, for example.

The datasets that are the focus of this post relate to GP practice level prescription data. One datafile lists GP practices (I’ve uploaded this to Google Fusion tables), and includes practice name, identifier, and address. I geocoded the Google Fusion tables version of the data according to practice postcode, so we can see on a map how the practices are distributed:

(There are a few errors in the geocoding that could probably be fixed by editing the correspond data rows, and adding something like “, UK” to the postcode. (I’ve often thought it would be handy if you could force Google Fusion Table’s geocoder to only return points within a particular territory…))

The prescription data includes data at the level of item counts by drug name or prescription item per month for each practice. Trivially, we might do something like take the count of methadone prescriptions for each practice, and plot a map sizing points at the location of each practice by the number of methadone prescriptions by that practice. All well and good if we bear in mind the fact the the data hasn’t been normalised by the size of the practice, doesn’t take into account the area over which the patients are distributed, doesn’t take into account the demographics of the practices constituency (or recognise that a particular practice may host a special clinic, or the sample month may have included an event that drew in a large transient population with a particular condition, or whatever). A good example to illustrate this taken from another context might be “murder density” in London. It wouldn’t surprise me if somewhere like Russell Square came out as a hot spot – not because there are lots of murders there, but because a bomb went off on a single occasion killing multiple people… Another example of “crime hot spots” might well be courts or police stations, places that end up being used as default/placeholder locations if the actual location of crime isn’t known. And so on.

The analyst responsible for creating quick and dirty sketch maps will hopefully be mindful of the factors that haven’t been addressed in the construction of a sketch, and will consequently treat with suspicion any result unless they’ve satisfied themselves that various factors have been taken into account, or discount particular results that are not the current focus of the question they are asking themselves of the data in a particular way.

So when it comes to producing a post like this looking at demonstrating some practical skills, care needs to be taken not to produce charts or maps that appear to say one thing when indeed they say nothing… So bear that in mind: this post isn’t about how to generate statistically meaningful charts and tables; it’s about mechanics of getting rows of data out of big files and into a form we can start to try to make sense of them

Another reason I’m a little twitchy about this post relates to describing certain skills in an open and searchable/publicly discoverable forum. (This is one reason why folk often demonstrate core skills on “safe” datasets or randomly generated data files.) In the post Googling Nasties and Oopses on University and Public Sector Websites, a commenter asked: “is it really ethical to post that information?” in the context of an example showing how to search for confidential spreadsheet information using a web search engine. I could imagine a similar charge being leveled at a post that describes certain sorts of data wrangling skills. Maybe some areas of knowledge should be limited to the priesthood..?

To mitigate against any risks of revealing things best left undiscovered, I could draw on the NHS Information Centre’s Evaluation and impact assessment – proposal to publish practice-level prescribing data[PDF] as well as the risks acknowledged by the recent National Audit Office report on Implementing transparency (risks to privacy, of fraud, and other possible unintended consequences). But I won’t, for now…. (dangerrrrrroussssssssss…;-)

(Academically speaking, it might be interesting to go through the NHS Info Centre’s risk assessment and see just how far we can go in making those risks real using the released data set as a “white hat data hacker”, for example! I will go through the risk assessment properly in another post.)

So… let the journey into the data begin, and the reason why I felt the need to have a play with this data set:

Note: Due to the large file size (over 500MB) standard spreadsheet applications will not be able to handle the volumes of data contained in the monthly datasets. Data users will need to analyse the information using specialist data-handling software.

Hmmm… that’s not very accessible is it?!

However, if you’ve read my previous posts on Playing With Large (ish) CSV Files or Postcards from a Text Processing Excursion, or maybe even the aforementioned local sentencing data post, you may have some ideas about how to actually work with this file…

So fear not – if you fancy playing along, you should already be set up tooling wise if you’re on a Mac or a Linux computer. (If you’re on a Windows machine, I cant really help – you’ll probably need to install something like gnuwin or Cygwin – if any Windows users could add support in the comments, please do:-)

Download the data (all 500MB+ of it – it’s published unzipped/uncompressed (a zipped version comes in at a bit less than 100MB)) and launch a terminal.


I downloaded the December 2011 files as nhsPracticesDec2011.csv and nhsPrescribingDataDec2011.CSV so those are the filenames I’ll be using.

To look at the first few lines of each file we can use the head command:

head nhsPrescribingDataDec2011.CSV
head nhsPracticesDec2011.csv

Inspection of the practices data suggests that counties for each practice are specified, so I can generate a subset of the practices file listing just practices on the ISLE OF WIGHT by issuing a grep (search) command and sending (>) the result to a new file:

grep WIGHT nhsPracticesDec2011.CSV > wightPracDec2011.csv

The file wightPracDec2011.csv should now contain details of practices (one per row) based on the Isle of Wight. We can inspect the first few lines of the file using the head command, or use more to scroll through the data one page at a time (hit space bar to move on a page, ESCape to exit).

head wightPracDec2011.csv
more wightPracDec2011.csv

Hmmm.. there’s a rogue practice in there from the Wirral – let’s refine the grep a little:

grep 'OF WIGHT' nhsPracticesDec2011.CSV > wightPracDec2011.csv
more wightPracDec2011.csv

From looking at the data file itslef, along with the prescribing data release notes/glossary, we can see that each practice has a unique identifier. From previewing the head of the prescription data itself, as well as from the documentation, we know that the large prescription data file contains identifiers for each practice too. So based on the previous steps, can you figure out how to pull out the rows from the prescriptions file that relate to drugs issued by the Ventnor medical centre, which has code J84003? Like this, maybe?

grep J84003 nhsPrescribingDataDec2011.CSV > wightPrescDec2011_J84003.csv
head wightPrescDec2011_J84003.csv

(It may take a minute or two, so be patient…)

We can check how many rows there actually are as follows:

wc -l wightPrescDec2011_J84003.csv

I was thinking it would be nice to be able to get prescription data from all the Isle of Wight practices, so how might we go about that. From reviewing my previous text mining posts, I noticed that I could pull out data from a file by column:

cut -f 2 -d ',' wightPracDec2011.csv

This lists column two of the file wightPracDec2011.csv where columns are comma delimited.

We can send this list of codes to the grep command to pull out records from the large prescriptions file for each of the codes we grabbed using the cut command (I asked on Twitter for how to do this, and got a reply back that seemed to do the trick pretty much by return of tweet from @smelendez):

cut -d ',' -f 2 wightPracDec2011.csv | grep nhsPrescribingDataDec2011.CSV -f - > iwPrescDec2011.csv
more iwPrescDec2011.csv

We can sort the result by column – for example, in alphabetic order by column 5 (-k 5), the drugs column:

sort -t ',' -k 5 iwPrescDec2011.csv | head

Or we can sort by decreasing (-r) total ingredient cost:

sort -t ',' -k 7 -r iwPrescDec2011.csv | head

Or in decreasing order of the largest number of items:

sort -t ',' -k 6 -r iwPrescDec2011.csv | head

One problem with looking at those results is that we can’t obviously recognise the practice. (That might be a good thing, especially if we looked at item counts in increasing order… Whilst we don’t know how many patients were in receipt of one or more items of drug x if 500 or so items were prescribed in the reporting period across several practices, if there is only one item of a particular drug prescribed for one practice, then we’re down to one patient in receipt of that item across the island, which may be enough to identify them…) I leave it as an exercise for the reader to work out how you might reconcile the practice codes with practice names (Merging Datasets with Common Columns in Google Refine might be one way? Merging Two Different Datasets Containing a Common Column With R and R-Studio another..?).

Using the iwPrescDec2011.csv file, we can now search to see how many items of a particular drug are prescribed across island practices using searches of the form:

grep Aspirin iwPrescDec2011.csv
grep 'Peppermint Oil' iwPrescDec2011.csv

And this is where we now start to need taking a little care… Scanning through that data by eye, a bit of quick mental arithmetic (divide column 7 by column 6) suggests that the unit price for peppermint oil is different across practices. So is there a good reason for this? I would guess that the practices may well be describing different volumes of peppermint oil as single prescription items, which makes a quick item cost calculation largely meaningless? I guess we need to check the data glossary/documentation to confirm (or deny) this?

Okay – enough for now… maybe I’ll see how we can do a little more digging around this data in another post…

PS Just been doing a bit of doing around other GP practice level datasets – you can find a range of them on the NHS Indicator Portal. As well as administrative links up to PCT and Stategic Health Authority names, you can get data such as the size and demographic make up of each practice’s registration list, data relating to deprivation measures, models for incidence of various health conditions, practice address and phone number, the number of nursing home patients, the number of GPs per practice, the uptake of various IT initiatives(?!), patient experience data, impact on NHS services data… (Apparently a lot of this ata is available in a ‘user friendly’ format on NHS Choices website, but I couldn’t find it offhand… as part of the GP comparison service. Are there any third party sites around built on top of this data also?)

Telling wannabe journos “Don’t work for free” doesn’t help

“Don’t work for free,” they were saying at the So You Want To Be A Journalist conference yesterday. “It’s fear, not freedom, that drives creators to succumb,” argued Jonathan Tasini in the Guardian.

The advice is understandable. But it’s also easy to say when you’re not an aspiring journalist competing against hundreds of others for entry level jobs.

The fact is that people do work for free to get a foot in the door, or experience, or both – and that many employers exploit that.

The fact is that this leads to a media industry which does not represent the diversity of its readers, viewers and users.

When opportunities are limited to those who can support themselves for months without a wage in an expensive city, to those who can fund degrees and postgraduate courses to boot, we end up with a journalism which is for the people but not of the people.

But telling people not to work for free won’t change that unless it offers an alternative opportunity. Continue reading

Aggregated Local Government Verticals Based on LocalGov Service IDs

(Punchy title, eh?!) If you’re a researcher interested in local government initiatives or service provision across the UK on a particular theme, such as air quality, or you’re looking to start pulling together an aggregator of local council consultation exercises, where would you start?

Really – where would you start? (Please post a comment saying how you’d make a start on this before reading the rest of this post… then we can compare notes;-)

My first thought would be to use a web search engine and search for the topic term using a search limit, maybe along with intitle:council, or at least council. This would generate a list of pages on (hopefully) local gov websites relating to the topic or service I was interested in. That approach is a bit hit or miss though, so next up I’d probably go to DirectGov, or the new site, to see if they had a single page on the corresponding resource area that linked to appropriate pages on the various local council websites. (The site takes a different approach to the old DirectGov site, I think, trying to find a single page for a particular council given your location rather than providing a link for each council to a corresponding service page?) If I was still stuck, OpenlyLocal, the site set up several years ago by Chris Taggart/@countculture to provide a single point of reference for looking up common adminsitrivia details relating to local councils, would be the next thing that came to mind. For a data related query, I would probably have a trawl around, the centralised (but far form complete) UK index of open public datasets.

How much more convenient it would be if there was a “vertical” search or resource site relating to just the topic or service you were interested in, that aggregated relevant content from across the UK’s local council websites in a single place.

(Erm… or maybe it wouldn’t?!)

Anyway, here are a few notes for how we might go about constructing just such a thing out of two key ingredients. The first ingredient is the rather wonderful Local directgov services list:

This dataset is held on the Local Directgov platform which provides the deep links into Local council websites for a number of services in Directgov. The Local Authority Service details holds the local council URLS for over 240 services where the customer can directly transfer to the appropriate service page on any council in England.

The date on the dataset post is 16/09/2011, although I’m not sure if the data file itself is more current (which is one of the issues with, you could argue…). Presumably, runs off a current version of the index? (Share…. 😉 Each item in the local directgov services list carries with it a service identifier code that describes the local government service or provision associated with the corresponding web page. That it, each URL has associated with it a piece of metadata identifying a service or provision type.

Which leads to the second ingredient: the esd standards Local Government Service List. This list maps service codes onto a short key phrase description of the corresponding service. So for example, Council – consultation and community engagement is has service identifier 366, and Pollution control – air quality is 413. (See the standards page for the actual code/vocabulary list in a variety of formats…)

As a starter for ten, I’ve pulled the Directgov local gov URL listing and local gov service list into scraperwiki (Local Gov Web Pages). Using the corresponding scraper API, we can easily run a query looking up service codes relating to pollution, for example:

select * from `serviceDesc` where ToName like '%pollution%'

From this, we can pick up what service code we need to use to look up pages related to that service (413 in the case of air pollution):

select * from `localgovpages` where LGSL=413

We can also get a link to an HTML table (or JSON representation, etc) of the data via a hackable URI:*%20from%20%60localgovpages%60%20where%20LGSL%20%3D413

(Hackable in the sense we can easily change the service code to generate the table for the service with that code.)

So that’s the starter for 10. The next step that comes to my mind is to generate a dynamic Google custom search engine configuration file that defines a search engine that will search over just those URLs (or maybe those URLs plus the pages they link to). This would then provide the ability to generate custom search engines on the fly that searched over particular service pages from across localgov in a single, dynamically generated vertical.

A second thought is to grab those page, index them myself, crawl them/scrape them to find the pages they link to, and index those pages also (using something like tf-idf within each local council site to identify and remove common template elements from the index). (Hmmm… that could be an interesting complement to scraperwiki… SolrWiki, a site for compiling lists of links, indexing them, crawling them to depth N, and then configuring search ranking algorithms over the top of them… Hmmm… It’s a slightly different approach to generating custom search engines as a subset of a monolithic index, which is how the Google CSE and (previously) the Yahoo BOSS engines worked… Not scaleable, of course, but probably okay for small index engines and low thousands of search engines?)

Step by step: how to start in a data journalist role

Following my previous posts on the network journalist and community manager roles as part of an investigation team, this post expands on the first steps a student journalist can take in filling the data journalist role.

1: Brainstorm data that might be relevant to your investigation or field

Before you begin digging for data, it’s worth mapping out the territory you’re working in. Some key questions to ask include:

  • Who measures or monitors your field? For example:
  • Where is spending recorded? This might be at both a local and national level.
  • What are the key things that might be measured in your field? For example, in prisons they might be interested in reoffending, or overcrowding, or staffing.
  • Can you find historical data?
  • What data do you need to provide basic context? e.g.
    • Where – addresses for all institutions in your field (e.g. schools, prisons, etc.)
    • Codes – often these are used instead of institution or area names
    • Who – names of those responsible for particular aspects of your field
    • Demographics – the distribution of age, gender, ethnicity, industries, wealth, property or other elements may be important to your work
    • Politics – who is in charge in each area (local authority and local MP)
  • How could you collate data that doesn’t exist? E.g. public awareness of something; or how the policies of different bodies compare, etc.

Sometimes the simplest and quickest way to find out these things is to pick up the phone and speak to someone in a relevant organisation and ask them: what information is collected about your field, and by whom?

You can also make content from this process of research: post a guide to how your field is regulated and measured (and what information isn’t); who’s who in your field – the regulators, monitors, politicians and bodies that all have a hand in keeping it on track.

2. Learn advanced techniques to obtain that data

Once you’ve mapped it all out you can start to prioritise the datasets that are most relevant to your particular investigation. You may need to use different techniques to get hold of these, including:

Again, you can make content from this process, for example: “How we found…” or “Why we’re asking the MoJ for…” (with a link to the FOI request) or “Get the data” (here’s how to publish data online)

The flow chart below (from this previous post) helps guide you to the relevant techniques for your data:

Gathering data: a flow chart for data journalist
Gathering data: a flow chart for data journalist

3. Pull out the parts of data relevant to your field/investigation

For example:

4. Add value to the data

Here are just some suggestions. You can use one or many:

Any of these provide useful opportunities for posting new content with the new contextual information (e.g. “How the data on X was gathered“) or new combined data (“Now with QOF data“) or the issues that they raise (“Why schools data may be worthless“).

5. Communicate the story in the data

I’ve written separately about the different ways of communicating data stories, so you can read that here. In short, human case studies are helpful, and visualisation is often useful.

And it’s at this point that you can also link to the further detail provided in all the content you’ve written in the previous 4 steps: How you got the data, the wider context, the specific data that’s of interest, the more detailed expert analysis or background, and so on.

Step by step: how to start in a data journalist role

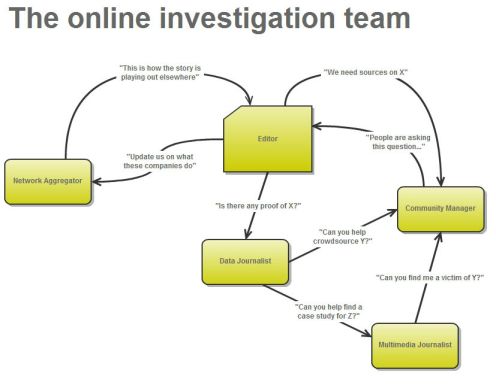

Investigations team flowchart

Following my previous posts on the network journalist and community manager roles as part of an investigation team, this post expands on the first steps a student journalist can take in filling the data journalist role.

1: Brainstorm data that might be relevant to your investigation or field

Before you begin digging for data, it’s worth mapping out the territory you’re working in. Some key questions to ask include:

  • Who measures or monitors your field? For example:
